Bosworth Steamer

"The Bosworth was a two-passenger steam surrey that developed 7 1/2 hp and was built by Frank C. Bosworth in the stable of his home at 119 Main Street in Saugus.

It was begun in 1903, completed in 1904, and received Massachusetts Automobile Register No. 8634 on September 27th of that year.

Family members recall that the Bosworth Steamer was successfully tested and was driven on the roads around Saugus Frequently."[1]

Bosworth Steamer Photograph

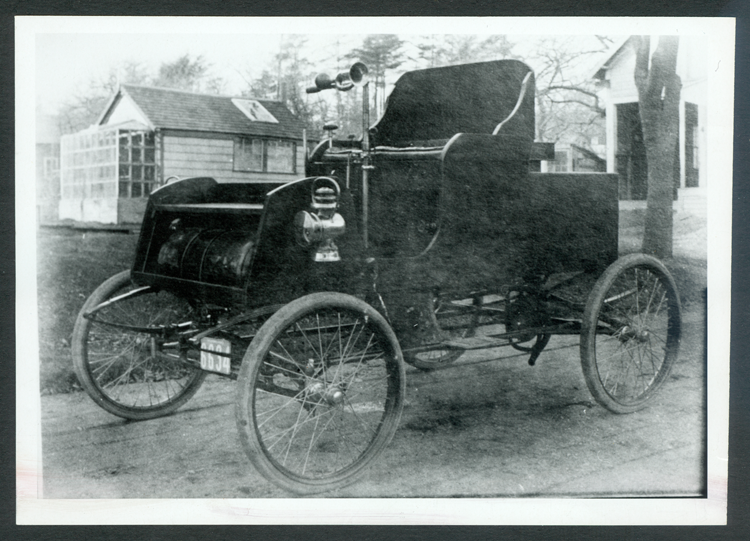

The Bosworth Steamer. This photograph also appears on page 138 of Kimes & Clark. Ca: 1903 - 1904.
Bosworth Steamer Photograph

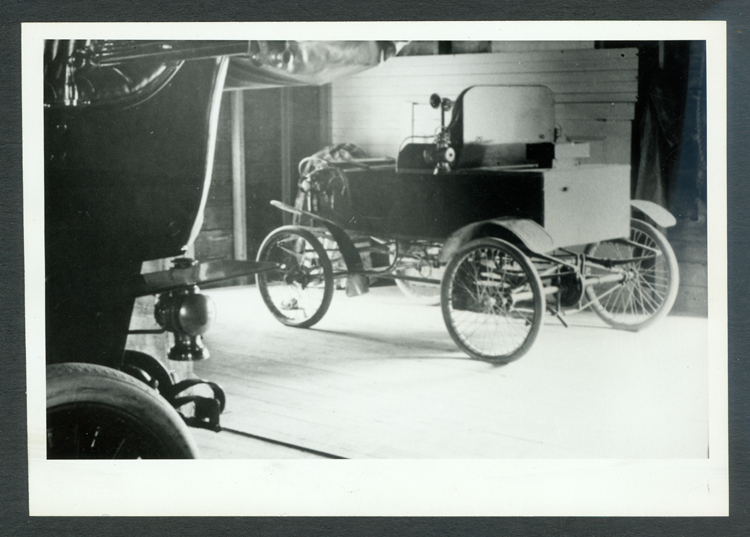

The Bosworth Steamer from the left rear. This photograph shows the interior of the stable in which Bosworth built his car. Ca: 1903 - 1904. The automobile that appears at the left of the photograph is unidentified, but indicates that the Bosworth Family had purchased automobiles at an early date. This photo may have been taken long after the Steamer was completed.
bosworth_steamer Photograph

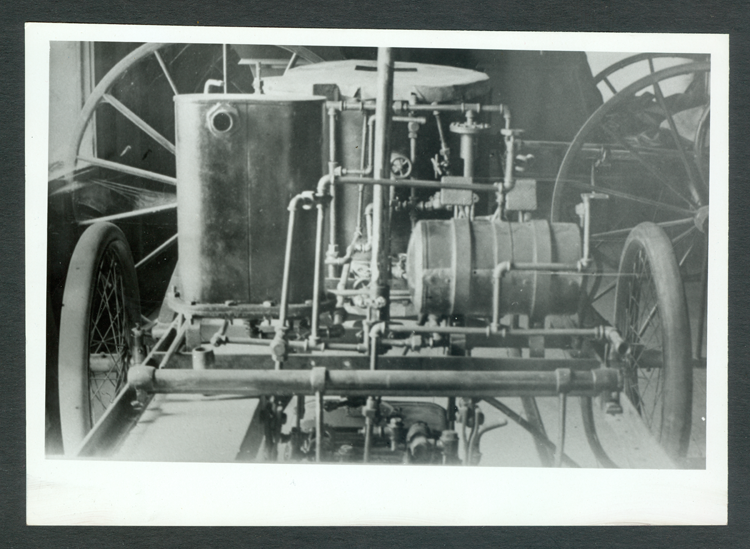

The Bosworth Steamer technical view from the rear looking forward. Although the Bosworth is primarily piped with what appears to be cast iron, note the fuel pressure automatic that looks similar to Stanley automatics. These items could be purchased from catalogues by 1903 - 1904. This photograph may have been taken during construction to document progress.
bosworth_steamer Photograph

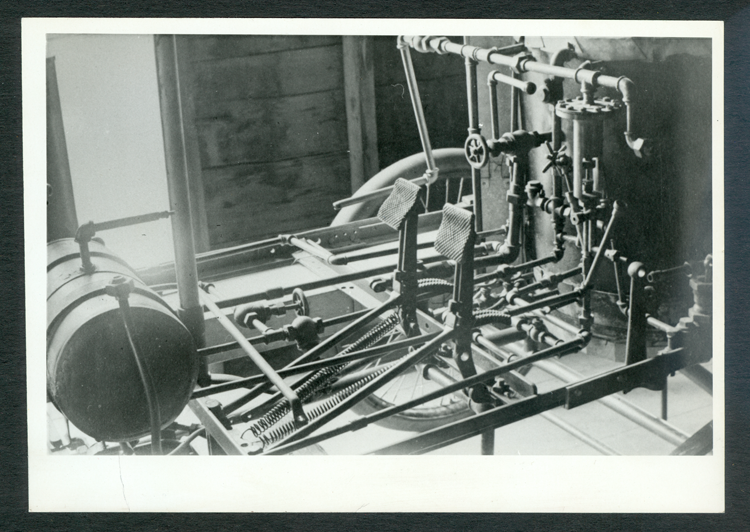

The Bosworth Steamer side view of the fire wall and pedal controls. This photograph may have been taken during construction to document progress. Ca: 1903 - 1904.
bosworth_steamer Photograph

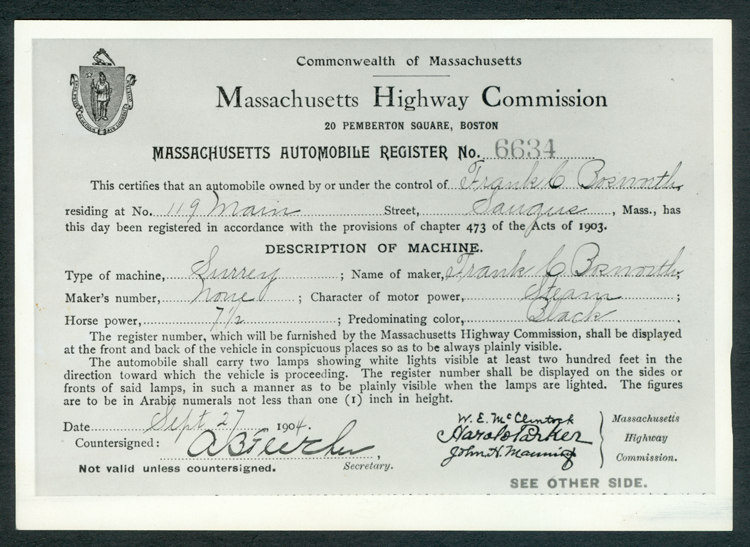

The Massachusetts Highway Commission's Automobile Registration for the Bosworth Steamer. This document is also cited in Kimes & Clark. Dated September 27, 1904.
bosworth_steamer Photograph
The VSCM acquired these photographs through purchase on eBay from Walter McCarthy in January 2008. It is not known where he acquired them, but the photographer's name that appears on the reverse of all these photographs is located in Saugus, MA.

[1]Kimes, Beverly Rae and Clark, Henry Austin Jr., Standard Catalogue of American Cars, 1805 - 1942, 3rd Edition, (Iola, WI, Krause Publications, 1996), p. 138.
